STL-3025
Technical information:

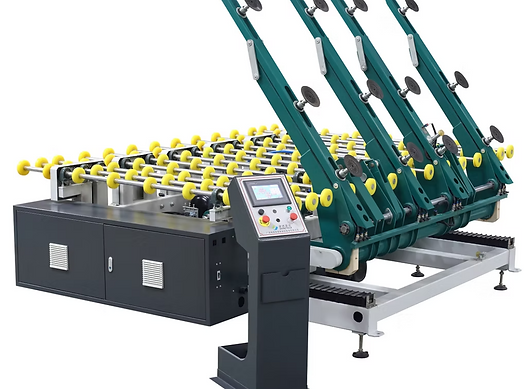

High speed glass loader
1. Max. Glass size：3000*2000mm
2. Min. Glass size：600*300mm
3. Glass thickness：3-19mm
4. Working speed：15s
5. Height of working table: 920±20mm
6. Total Power：4.75KW
7.Overall size：3000*2500*920mm
8. Total weight：2500Kg
STL-6133
Multi-station glass loader
1. Max. Glass size：6100*3300mm
2. Min. Glass size：1100*1000mm
3. Glass thickness：3-19mm
4. Working speed：50s
5. Height of working table: 920±20mm
6. Total power：9.0KW
7. Overall size：L6100*W3300*H920mm
8. Total weight：3500Kg
STL-3025
L shape glass unloader with positioning table
1. Max. Glass size：5000*2500mm
2. Min. Glass size：800*800mm
3. Glass thickness：3-19mm
4. Working speed：25s
5. Height of working table:920±20mm 6. Total power：5.5KW
7. Overall size L5000*W2700*H920mm 8. Total weight：3200Kg
STL-2016
L shape glass unloader with positioning table
1. Max. Glass size：5000*2500mm
2. Min. Glass size：800*800mm
3. Glass thickness：3-19mm
4. Working speed：25s
5. Height of working table: 920±20mm
6. Total power：5.5KW
7. Overall size：L5000*W2700*H920mm
8. Total weight：3200Kg
GLASS CONVEYOR
Glass rotary table Specification:
1. Transmission Max. Glass size：6100*3300mm
2. Min. Rotary glass size：800*800mm
3. Glass thickness：3-19mm
4. Working speed：30s
5. Height of working table: 920±20mm
6. Total power：3.25KW
7. Overall size：L6600*W3400*H920mm
8. Total weight：2200Kg
